Prices for 2 layers 0.062" FR4 1 oz copper, Green Soldermask, White Legend. 4 days turnaround.

How to save Setup cost
Fit the different designs with same parameters onto one panel then can save setup fee.

In DXP/Altium, you can do Multi-design very fast and easy, click Here to learn how to operate in Altium.  Click Here for how to export gerber file from Altium.

If you want to fit some different gerber files into one panel then you need a CAM software. Current we are using CAM350 and Genesis.
We give free setup to big volume(more than 3 sqm) order for standard 2 layer board, if your order is closed to 3 sqm volume, then you can make few more to keep enough 3 sqm then can get free setup cost.
Protel design Tips
With Protel files the edge of the board must be defined by either mechanical layer 1 or the keep-out layer. Mechanical layer 1 takes precedence unless otherwise stated by the customer. Use a track of 0.001" to define the perimeter. If you are panelising the panel you must allow 0.100" between each pcb. If your boards are too close then production will be delayed while we seek your advice. When you panelise, DO NOT place a 0.100" thick track between the pcbs to indicate the router path.
Useful Hints For Protel Users
Check there are no holes in SMD pads in Protel. The program may indicate hole size not used, however, go to edit to verify hole size is 0.0mm When panelising, ensure the duplicate designator is turned on, otherwise the overlay numbering will change when panelising.
Useful hints for Autotrax users
Block reading pcbs will ensure that components are not renumbered when panelising. TRAXSTD.LIB has most hole sizes wrong and sometimes puts holes on single layer pads. Single layer pads sometimes show HOLE SIZE "NOT USED". This does not mean there is no hole. Set the pad layer to multi layer then set the hole size to the required size ( 0 for no hole) and then set the pad layer back to the original layer. Strings are only displayed and printed in multiples of 0.012" with a minimum size of 0.036". Using sizes that are not multiples of 0.012" could result in strings overwriting other parts of the pcb.

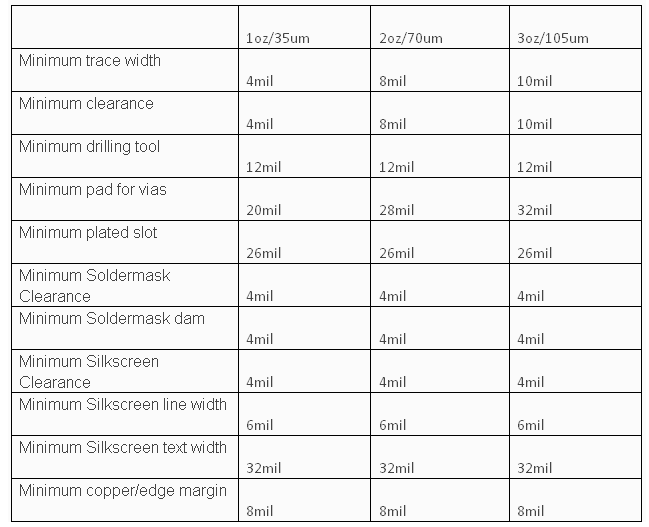

PCB design rules
